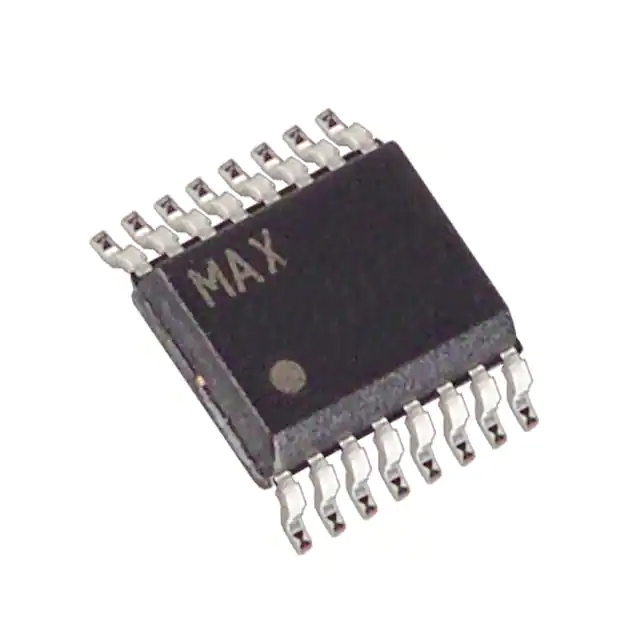

MAX14850AEE+
MAX14850AEE+
- Available: 300
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Part Number: MAX14850AEE+
- Detailed Description:General Purpose Digital Isolator 600Vrms 6 Channel 2Mbps, 50Mbps 1.5kV/µs CMTI 16-SSOP (0.154", 3.90mm Width)
- Category:Isolators | Digital Isolators
- RoHS Status： ROHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
4.5480
10+
4.2751
100+
4.0477
1000+
3.8203
10000+
3.5929
Considering price fluctuations, this price is only for reference. Please send RFQ to info@aceera.net to get the best price, thank you.
| Manufacturer | Analog Devices Inc./Maxim Integrated |
|---|---|
| Series | - |
| Package | Tube |
| Standard Package | 100 |
| Product Status | Active |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 6 |
| Inputs - Side 1/Side 2 | 4/4 |
| Channel Type | Bidirectional | Unidirectional |
| Voltage - Isolation | 600Vrms |
| Common Mode Transient Immunity (Min) | 1.5kV/µs |
| Data Rate | 2Mbps | 50Mbps |
| Propagation Delay tpLH / tpHL (Max) | - |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | - |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154" | 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| Base Product Number | MAX14850 |
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
