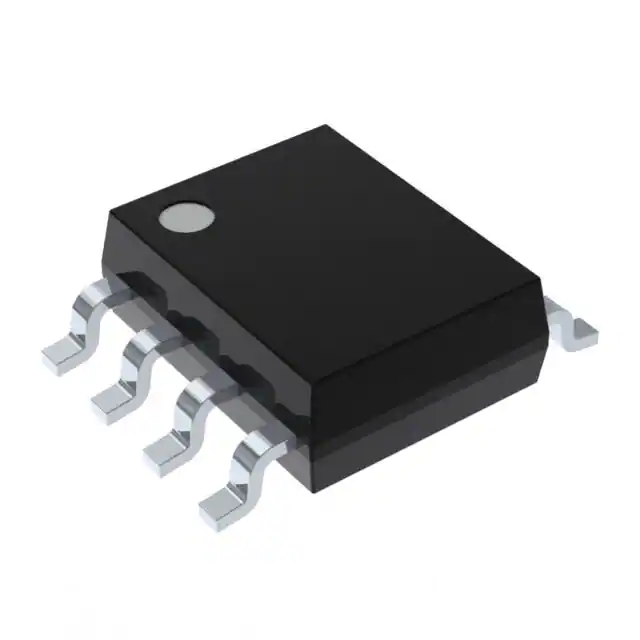

MAX12931BASA+
MAX12931BASA+
- Available: 10
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Part Number: MAX12931BASA+
- Detailed Description:General Purpose Digital Isolator 3750Vrms 2 Channel 25Mbps 50kV/µs (Typ) CMTI 8-SOIC (0.154", 3.90mm Width)
- Category:Isolators | Digital Isolators
- RoHS Status： ROHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
4.8960
10+
4.6022
100+
4.3574
1000+
4.1126
10000+
3.8678
Considering price fluctuations, this price is only for reference. Please send RFQ to info@aceera.net to get the best price, thank you.
| Manufacturer | Analog Devices Inc./Maxim Integrated |
|---|---|
| Series | - |
| Package | Tube |
| Standard Package | 100 |
| Product Status | Active |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 1/1 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 50kV/µs (Typ) |
| Data Rate | 25Mbps |
| Propagation Delay tpLH / tpHL (Max) | 32.5ns | 33.6ns |
| Pulse Width Distortion (Max) | 4ns |
| Rise / Fall Time (Typ) | 1.6ns | 1.4ns (Max) |
| Voltage - Supply | 1.71V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154" | 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MAX12931 |
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
