BS-R250210
BS-R250210
- Available: 0
- Manufacturer: WIZnet
- Part Number: BS-R250210

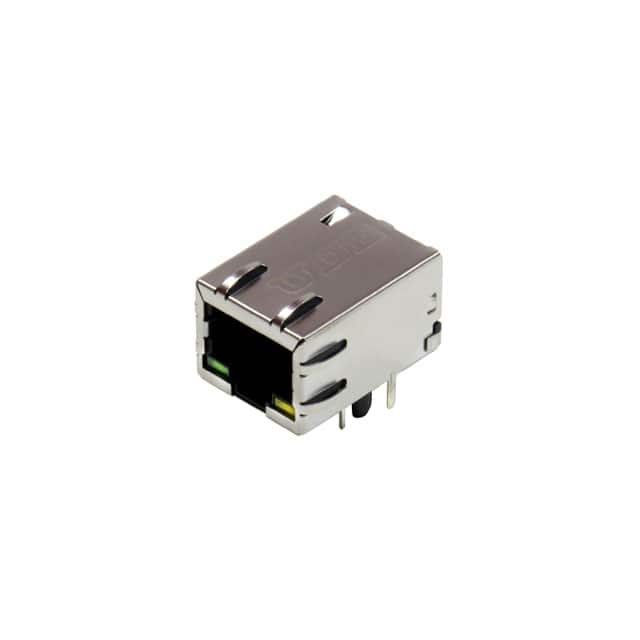

- Detailed Description:1 Port RJ45Surface Mount 10/100 Base-T
- Category:Connectors, Interconnects | Modular Connectors - Jacks With Magnetics
- RoHS Status： ROHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
6.1711
10+
5.8009
100+
5.4923
1000+
5.1837
10000+
4.8752
Considering price fluctuations, this price is only for reference. Please send RFQ to info@aceera.net to get the best price, thank you.
| Manufacturer | WIZnet |
|---|---|
| Series | - |
| Package | Strip |
| Standard Package | 500 |
| Product Status | Active |
| Connector Type | RJ45 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Applications | 10/100 Base-T |
| Mounting Type | Surface Mount |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Height Above Board | 0.536 (13.61mm) |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 4 |
| Shielding | Shielded, EMI Finger |
| Features | Board Guide |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Shield Material | Stainless Steel |
| Housing Material | Thermoplastic |
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
