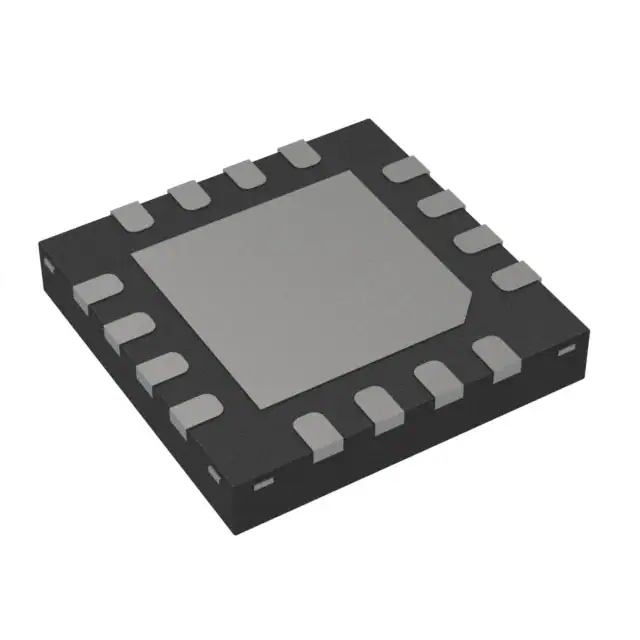

MAX5974EETE+
MAX5974EETE+
- Available: 50
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Part Number: MAX5974EETE+
- Detailed Description:Converter Offline Flyback Topology 100kHz ~ 600kHz 16-TQFN (3x3)
- Category:Integrated Circuits (ICs) | PMIC - AC DC Converters, Offline Switchers
- RoHS Status： ROHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
5.4600
10+
5.1324
100+
4.8594
1000+
4.5864
10000+
4.3134
Considering price fluctuations, this price is only for reference. Please send RFQ to info@aceera.net to get the best price, thank you.
| Manufacturer | Analog Devices Inc./Maxim Integrated |
|---|---|
| Series | - |
| Package | Strip |
| Standard Package | 10 |
| Product Status | Active |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 16 V |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 26V |
| Duty Cycle | 80% |
| Frequency - Switching | 100kHz ~ 600kHz |
| Fault Protection | Current Limiting | Over Temperature | Short Circuit |
| Control Features | EN | Frequency Control | Soft Start | Sync |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (3x3) |
| Mounting Type | Surface Mount |
| Base Product Number | MAX5974 |
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
