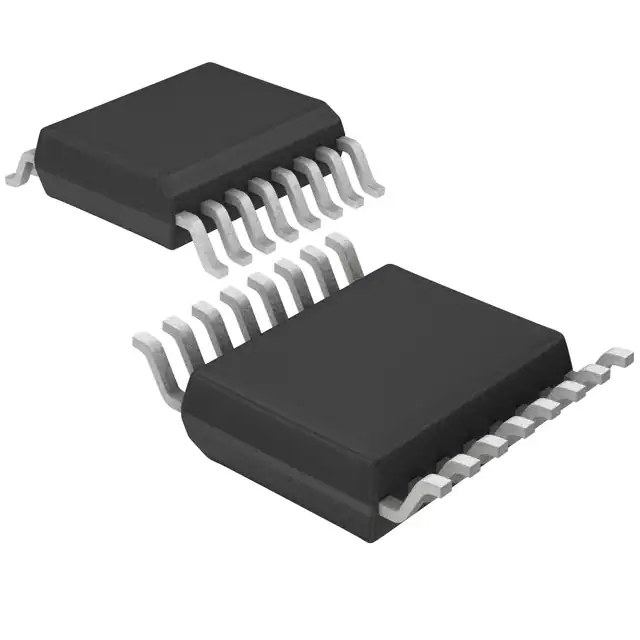

ISL6753AAZA-T
ISL6753AAZA-T
- Available: 5000
- Manufacturer: Renesas Electronics America Inc
- Part Number: ISL6753AAZA-T
- Detailed Description:Full-Bridge Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 16-QSOP
- Category:Integrated Circuits (ICs) | PMIC - Voltage Regulators - DC DC Switching Controllers
- RoHS Status： ROHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
7.5480
10+
7.0951
100+
6.7177
1000+
6.3403
10000+
5.9629
Considering price fluctuations, this price is only for reference. Please send RFQ to info@aceera.net to get the best price, thank you.
| Manufacturer | Renesas Electronics America Inc |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 2500 |
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Full-Bridge |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 16V |
| Frequency - Switching | Up to 2MHz |
| Duty Cycle (Max) | 99% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154, 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| Base Product Number | ISL6753 |
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
