D2840-42
D2840-42
- Available: 30
- Manufacturer: Harwin
- Part Number: D2840-42

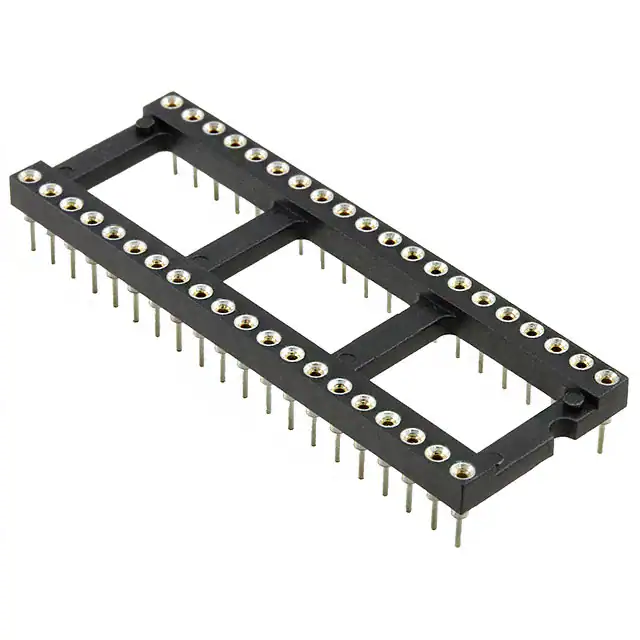

- Detailed Description:40 (2 x 20) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
- Category:Connectors, Interconnects | Sockets for ICs, Transistors - IC Sockets
- RoHS Status： ROHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
5.7960
10+
5.4482
100+
5.1584
1000+
4.8686
10000+
4.5788
Considering price fluctuations, this price is only for reference. Please send RFQ to info@aceera.net to get the best price, thank you.
| Manufacturer | Harwin |
|---|---|
| Series | D2 |
| Package | Tube |
| Standard Package | 10 |
| Product Status | Active |
| Type | DIP, 0.6" (15.24mm) Row Spacing |
| Number of Positions or Pins (Grid) | 40 (2 x 20) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 196.9µin (5.00µm) |
| Contact Material - Post | Brass |
| Housing Material | Plastic |
| Operating Temperature | -55°C ~ 125°C |
| Termination Post Length | 0.126" (3.20mm) |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1 A |
| Contact Resistance | 10mOhm |
| Base Product Number | D2840 |
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
